The ESA710 comes integrated with OneQA software. The power of OneQA delivers workflow automation to help simplify the biomedical testing process. Users can customize pre-built procedures on ESA710, and results are automatically saved on the device with the option of syncing to your PC simultaneously. The intuitive user interface empowers all levels of a biomed team to standardize and streamline report integration reducing human error. And it’s portable for effortless transport.

Precision. Performance. Peace of Mind with our NEW Protect+ program

Discover the Protect+ program. Protect+ is designed for one purpose: Giving you peace of mind. The Protect+ program takes the guesswork out of total cost of ownership, eliminating unexpected repair costs so you can focus on keeping patient care on-track and on-budget.

Click here to learn more about Protect+

ESA710 Electrical Safety Analyzer

Our easiest-to-use electrical safety analyzer, ever.

Redefining automated testing in a compact format, the ESA710 Electrical Safety Analyzer is an essential tool for healthcare technology management professionals looking for portability without compromising functionality. This high-functioning device enables users to perform from basic troubleshooting to comprehensive analysis, to help ensure electrical safety testing on medical equipment complies with key electrical safety standards, such as ANSI/AAMI ES1 and NFPA 99, whether on-field or within facilities.

Request a quote or demo

First Name *

Last Name *

Email address *

Company *

Business Phone *

Country/Region *

Zip or Postal Code *

Postal Code

List all products of interest *

Protect+

Get details on a Protect+ plan

I would like to *

Get pricing

Get a demo

Talk with an expert

We regret that the current U.S. Export Regulations prohibit the sale of our products to U.S. embargoed countries. We must, therefore, decline any request for our products.

After submitting this form you will receive an email to confirm your email subscription.

Leave this field blank

Product Details

ESA710

Overview

Key Features

5” Touchscreen with intuitive user interface
Small, portable, ergonomic design with an integrated handle
OneQA-enabled workflow automation eliminates need for laptop
Wireless capability allows you to run test procedures in the field and automatically sync results
Ten applied parts posts with innovative LED lighting guidance (ECG & Banana)
Insulation resistance from 50V, 100V, 250V and 500V
On-board automation with automated test sequences for compliance to key electrical safety standards (ANSI/AAMI ES1, NFPA 99)
ECG waveform tests and dual-lead measurements combine the functionality of a simulator and safety analyzer in a single test tool
Ability to upload pictures, instructions, and text to procedures
20 A at 120 V equipment current capability
Replaceable mains fuses keep your unit in the field and out of the repair shop
Rigorously tested for rugged field applications with CE and CSA in addition to Fluke-quality ruggedness for longterm reliability
Enjoy precision, compliance, and total peace of mind through our comprehensive service and coverage program, eliminating unexpected costs with our Protect+ Program
Global support network delivering prompt service and peace of mind to Fluke Biomedical customers worldwide

Streamlined Electrical Safety Testing

The ESA710 Electrical Safety Analyzer revolutionizes automated testing by offering a compact, yet functional design. The tool is particularly useful for healthcare technology management professionals who require portability without sacrificing functionality. It enables users to perform a range of functions, from basic troubleshooting to comprehensive analysis. This makes the ESA710 a game-changer for electrical safety testing on medical equipment, whether in the field or within facilities. The analyzer prioritizes workflow accuracy and efficiency, boasting a 5" color LCD touchscreen and a user-friendly interface for easy device navigation.

ESA710 Electrical Safety Analyzer with user

Simplified Procedures with Visual Aids

The ESA710 is not just about performing functions; it's about guiding the user through each step. The device provides visual onscreen instructions during procedures, making it easier for users to understand and follow the process. It even comes with illuminating LED lights to guide users where and when to make connections.

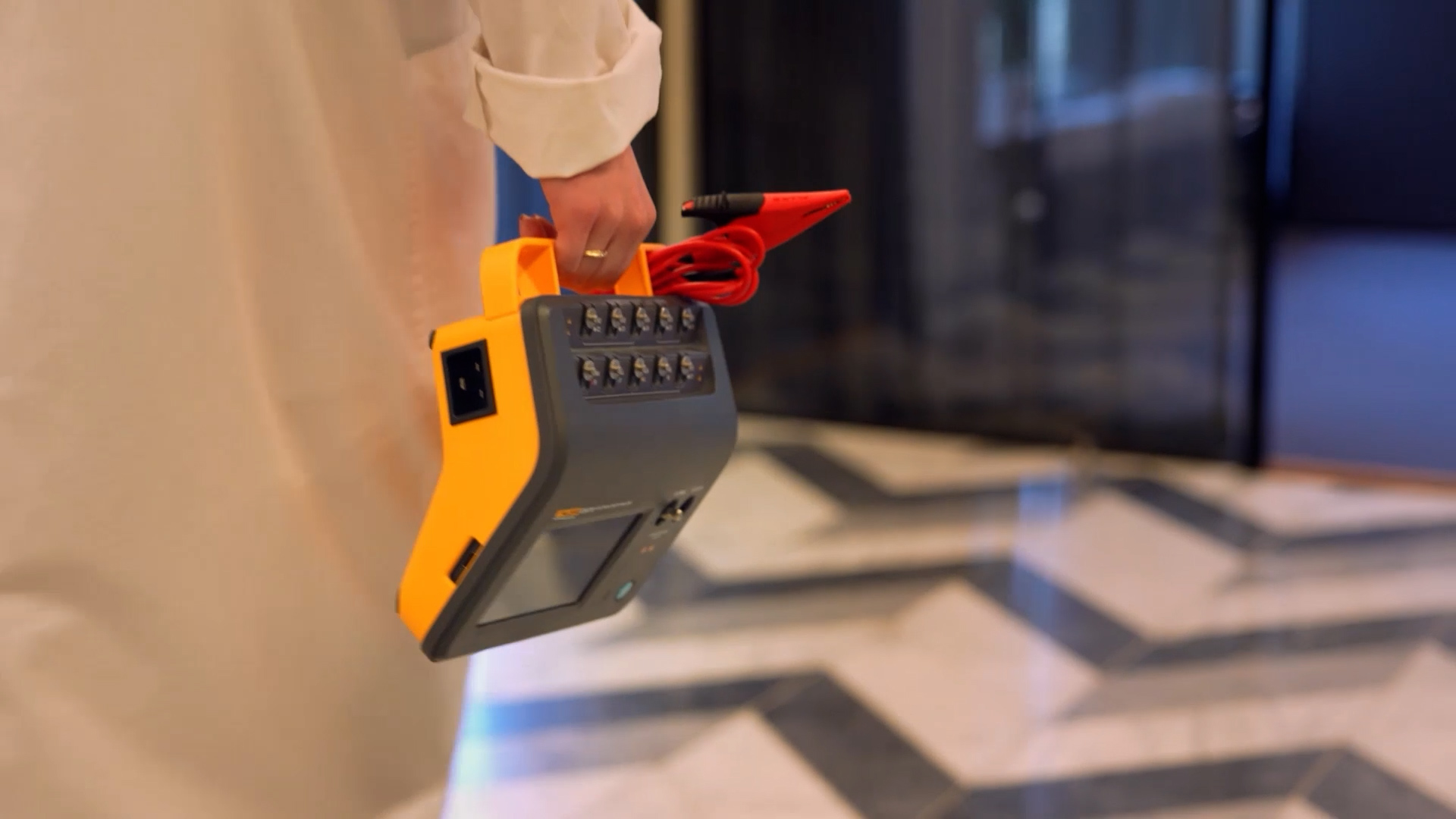

ESA710 Electrical Safety Analyzer held by the handle

Durable, Reliable, and Supported Worldwide

The ESA710 is rigorously tested for rugged field applications. It comes with CE and CSA certification, ensuring Fluke-quality ruggedness for long-term reliability. In case of any unexpected costs, a comprehensive service and coverage program, the Protect+ Program, ensures users enjoy precision, compliance, and total peace of mind. To top it all, ESA710 is backed by a global support network that delivers prompt service and peace of mind to Fluke Biomedical customers worldwide.

Models

Model Name	Part Number	Description
ESA710-US	5577713	ESA710-US Electrical Safety Analyzer - Standard Accessories: Getting started guide (5517611) OneQA quick guide (5517610) USB C to USB A cable (5579600) USA accessory kit: test lead set TP1 test probe set AC285 alligator clip set (3111008) Probe test banana jack 4MM tip black w/cap (2427138) Probe test banana jack 4MM tip red w/cap (2099044), Null post adapter (3326842) Carrying case (2248650) Power cord (2238644)
ESA710-02-NA220	6028740	ESA710-02-NA220 Electrical Safety Analyzer – Standard Accessories Getting Started Guide (Part #: 5517611) OneQA Quick Guide (Part #: 5517610) USB-C to USB-A Cable (Part #: 5579600) USA Accessory Kit: Test Lead Set TP1 Test Probe Set AC285 Alligator Clip Set (Part #: 3111008) Probe Test Banana Jack, 4mm Tip, Black with Cap (Part #: 2427138) Probe Test Banana Jack, 4mm Tip, Red with Cap (Part #: 2099044) Null Post Adapter (Part #: 3326842) Carrying Case (Part #: 2248650) Power Cord (Part #: 2238644)

Model Name

Part Number

Description

ESA710-US

5577713

ESA710-US Electrical Safety Analyzer - Standard Accessories:

Getting started guide (5517611)
OneQA quick guide (5517610)
USB C to USB A cable (5579600)
USA accessory kit: test lead set
TP1 test probe set
AC285 alligator clip set (3111008)
Probe test banana jack 4MM tip black w/cap (2427138)
Probe test banana jack 4MM tip red w/cap (2099044),
Null post adapter (3326842)
Carrying case (2248650)
Power cord (2238644)

ESA710-02-NA220

6028740

ESA710-02-NA220 Electrical Safety Analyzer – Standard Accessories

Getting Started Guide (Part #: 5517611)
OneQA Quick Guide (Part #: 5517610)
USB-C to USB-A Cable (Part #: 5579600)
USA Accessory Kit:
- Test Lead Set
- TP1 Test Probe Set
- AC285 Alligator Clip Set (Part #: 3111008)
Probe Test Banana Jack, 4mm Tip, Black with Cap (Part #: 2427138)
Probe Test Banana Jack, 4mm Tip, Red with Cap (Part #: 2099044)
Null Post Adapter (Part #: 3326842)
Carrying Case (Part #: 2248650)
Power Cord (Part #: 2238644)
